Clamp Rack Plans for Woodworkers + Digital Plans + CNC Files

Get the digital plans and 2D DXF files to make a super-strong clamp rack. From our plans, you can easily make this clamp rack with traditional wood tools or a CNC router.

This download includes multiple 3D CAD files along with dimensioned PDF plans, and digital DXF files ready for CNC cutting.

Files are available for download instantly after purchase.

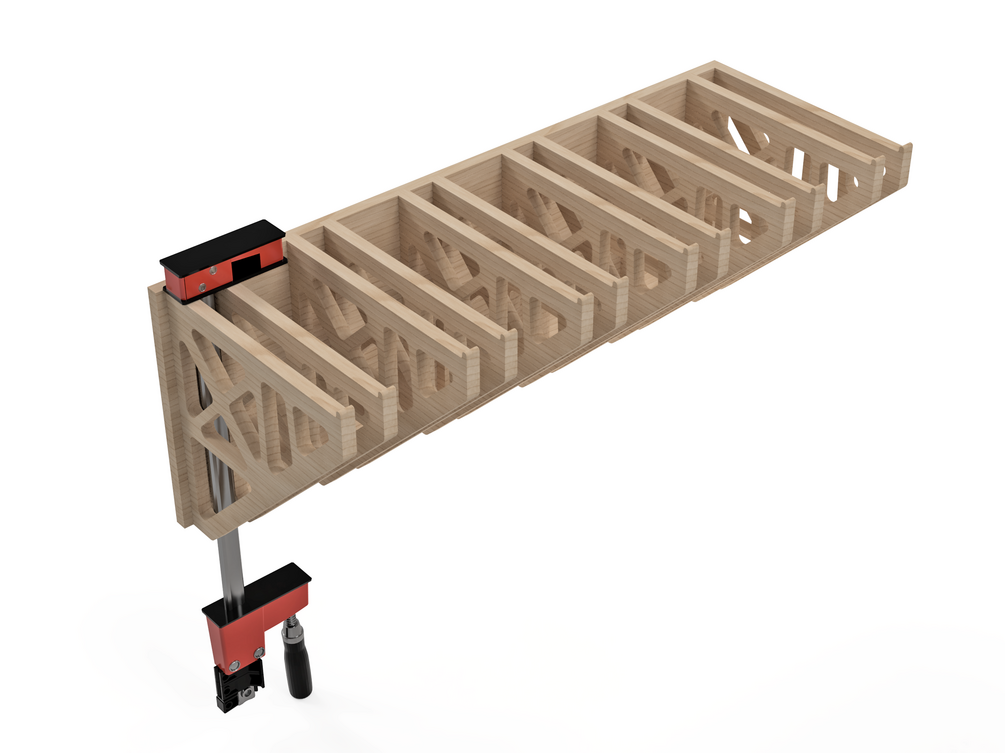

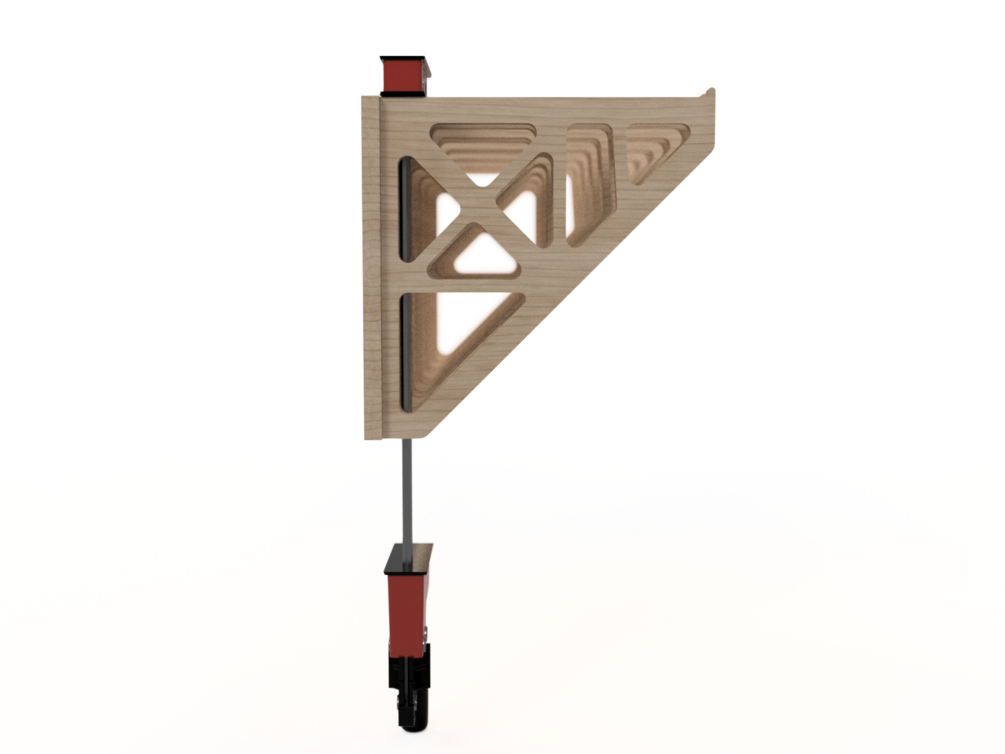

The clamp rack is designed to be made from 3/4" plywood and only uses about one-half of a 48x96" sheet. This is dead simple and easy to make. Simply use the pre-drilled screw holes to perfectly align each of your support brackets in the dados which help increase strength while your glue dries. You can make this design with a CNC router or a table saw and hang up all your clamps.

Get your shop or garage organized and stop putting those clamps in a corner!

INCLUDED:

• Fusion 360 Nest file (F3D)
• Generic 3D STEP files (STEP)
• Sketchup (SKP)
• DXF 2D nested files
• Reference Drawings
